TCDD DE33000

DE 33000

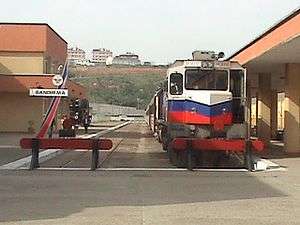

A DE33000 at Bandirma Station.
Type and origin
Power type Diesel-electric
Designer Electro-Motive Diesel
Builder Tülomsaş
Model EMD GT26CW-2
Build date 2003 – 2010
Total produced 89
Specifications
AAR wheel arr. C-C
UIC class Co'Co'
Gauge 1,435 mm (4 ft 8 1⁄2 in)
Bogies 2
Wheel diameter 1,016 mm (40 in)
Length 20,770 mm (68 ft 1.7 in)
Loco weight 119 t (117 long tons; 131 short tons)
Fuel capacity 4,542 L (999 imp gal; 1,200 US gal)
Prime mover EMD 16-645E3C
RPM range 360-904
 • RPM low idle 225
 • RPM idle 316
 • Maximum RPM 1007
Engine type Two-stroke diesel
Aspiration Turbocharged
Cylinders 16
Transmission AC-DC-AC
Loco brake Air, Dynamic brake
Train brakes Air
Safety systems Engine overspeeding protection, emergency brake
Performance figures
Maximum speed 131 km/h (81 mph)
Power output 2,463 kW (3,300 hp)
Tractive effort:
 ​
 • Starting 380kN
 • 1 hour 344kN @ 20 km/h
 • Continuous 66kN at max speed
Career
Operators TCDD Taşımacılık
Numbers DE33001 – DE33089

TCDD DE 33000 is a type of diesel-electric locomotive built for operations on Turkish State Railways by Tülomsaş. It is model GT26CW-2 designed by General Motors Electro-Motive Diesel and using the famous EMD 645 two stroke diesel engine and using the EMD_Dash_2 electronic module.

Total initial order was for 65 units, followed by supplemental orders to increase the quantity to 89, with delivery starting in 2003.
