PKP class ST45

ST45

Type and origin Power type Diesel Builder PESA Bydgoszcz SU45s built by Cegielski Build date 2009

Specifications AAR wheel arr. Co-Co Gauge 1,435 mm (4 ft 8 1⁄2 in) Driver dia. 1,100 mm Length 18,990 mm Width 3,900 mm Height 4,288 mm Engine type MTU 4000 Cylinders 12 Transmission Electric Loco brake Oerlikon

Performance figures Maximum speed 120 km/h Power output 1,500 kilowatts (2,000 bhp)

Career Operators PKP Class ST45 Number in class 4 Numbers ST45-01—ST45-04 Delivered 2009

ST45 is the name for a Polish diesel locomotive. They are freight only locomotives, having had their train heating removed.

History

These locomotives are SU45s with replacement engine and no train heating facilities.^[1] During 2009-2010 4 locomotives were rebuilt to class ST45.

Production

• ST45-01 (converted from SU45-112)
• ST45-02 (converted from SU45-238)
• ST45-03 (converted from SU45-254)
• ST45-04 (converted from SU45-240)

See also

• Polish locomotives designation

References

External links

External images

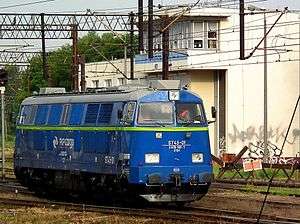

ST45-01
