Mup music publication program
Mup is a music publication program created for handling almost any kind of music, producing professional-looking results, yet be quick and easy to use. In 1995 the authors, 2 musicians and computer programmers, set up a website to make Mup available as shareware. In 2012, after 17 years of adding features, they decided to make it open-source software that is available for free to everyone.
Characteristics
The notation is done via text input, which Mup interprets and processes to PostScript output.
Example of Mup input file
//!Mup-Arkkra
define PR 1 @
define PL 2 @
define PNODYN(POS,DN) boldital(16) dyn between PR & PL align 0: POS DN; @
define PNODYNMARK(M) M between PR & PL align 0: @
header
title(30) "Excerpt from Walzer für Fortepiano"
title(5) " "
title(26) "G.131"
score
warn = n
pad = .5
time = 3/4
key = 2#
pagesize = a4
staffs = 2
scale = 0.65
beamstyle = 2.
vscheme = 3f
measnum = y
label = ""
barstyle = PR-PL
brace = PR-PL
scoresep = 20,24
packfact = 1
staff PR
clef = treble
defoct=4
staff PL
clef = bass
defoct=3
music
//# 0
PR: 4.s;8a=_comp ph;g#;a;
PL: 4.s;8r;4r;
PNODYN(2.5[-0],"p")
right(_win.e,_comp.y+18) "\s(16)Georg Gerson (1790-1825)";
bar mnum=1
//# 1
staff PR
defoct=5
music
PR: 8f;c;e;d;a-;a#- eph;
PL 1: 4r;af;af;
PL 2: 2.d;
bar
//# 2
staff PR
beamstyle=4.,4.
music
PR: 4c<>;8b-;ph;a#-;b-;
PL 1: 4r;bg;bg;
PL 2: 2.d;
bar
//# 3
staff PR
beamstyle=2.
music
PR: 8g;d#;f;e;b-;e eph;
PL 1: 4r;bg;bg;
PL 2: 2.d;
bar
//# 4
staff PR
beamstyle=4.,4.
music
PR: 4dn<>;8c;ph;b#-;c eph;
PL 1: 4r;age;age;
PL 2: 2.d;
PNODYNMARK(<) 2 til 1m+2[-2];
bar
//# 5
staff PR
beamstyle=2.
music
PR 1: 4b ph;b&;a eph;
PR 2: 8b;c;b&;c;a;c;
PL 1: 4r;age;age;
PL 2: 2.d;
PNODYNMARK(>) 2[+2] til 1m+0[-2];
bar
//# 6
PR: 8a<>;f;[with.]d;[]a-;f-<>;d-;
PL 1: 4r;af;af;
PL 2: 2.d;
PNODYNMARK(<) 2 til 1m+2[-2];
bar
//# 7
staff PR
defoct=4
beamstyle=2,4
music
PR: 8f+<>;d+;[with.]b;[]f;8.d<>;16e;
PL 1: [dist5]4r;f;g#;
PL 2: 4s;[up;ho3]2d;
PL 3: [down;ho0]2.b-;
PNODYNMARK(>) 2[+2] til 1m+0[-2];
bar
//# 8a
PR: 4d<>;8c;8s;4s;
PL 1: 4a~e~;8ae;8s;4s;
PL 2: 4a-~;8a-;8s;4s;
repeatboth mnum=8
//# 8b
staff PR
beamstyle=2.
music
PR: 4.s;[with.]...8aec;;;
PL: 4.s;[with.]...8aa-;;;
PNODYN(2.5[-0],"f")
bar
//# 9
staff PL
beamstyle=4.,4.
music
PR 1: 4g#<a>e~d<c>;8aec;r; 4e++;
PR 2: 2s;4c++ a+;
PL: 4b&<a>b&-<a->;8aa-;<<staff clef=treble>>8eca-;;;
PNODYN(2.5[-0],"p")
bar
//# 10
staff PR
beamstyle=4,8,4.
music
PR 1: 8.f++ ph below;32gn++;a++ eph;8e++;aec;;;
PR 2: 4d++ a+;8c++ a+;4.s;
PL: 4f<e>d<c>a-~;8eca-;<<staff clef=bass>>aa-;;;
PNODYN(2.5[-0],"f")
bar
//# 11
staff PL
beamstyle=4.,4.
music
PR 1: 4g#<a>e~d<c>;8aec;r;4e+;
PR 2: 2s;4c+a;
PL: 4b&<a>b&-<a->;8aa-;<<staff clef=treble>>8eca-;;;
PNODYN(2.5[-0],"p")
bar
//# 12
staff PR
beamstyle=4,8,8,4
music
PR 1: 8.f+ ph below;32gn+;a+ eph;8e+;[down]16a ph;b;c+;d+;e+;e#+;
PR 2: 4d+a;8c+a;4.s;
PL: 4f<e>d<c>a-~;8eca-;r;4;
PNODYNMARK(<) 2.5[-2] til 1m+0[-2];
bar
//# 13
staff PR
beamstyle=4.,4.
defoct=5
staff PL
beamstyle=2.
music
PR: 4.f eph;[grace]16g;8f;[grace]16g;8f;[grace]16g;8f;
PL: 8feca#-;;;;;;
PNODYN(1[-0],"f")
bar
//# 14
staff PR
beamstyle=4,4,4
music
PR: 8f<>;4d+;16c+ ph;b; a;g;f;e eph;
PL: 8fdb-;r;2eb-g-;
PNODYN(1.5[-1],"rf")
PNODYN(2[-0],"p")
bar
//# 15
PR: 8.f<>;16d;[grace];8.b<>;16a;8.a-<>;16c;
PL: 4fdan-;;gea-;
bar
//# 16a
PR: 4d;8r;s;4;
PL: 4fd;8r;s;4;
repeatboth mnum=16

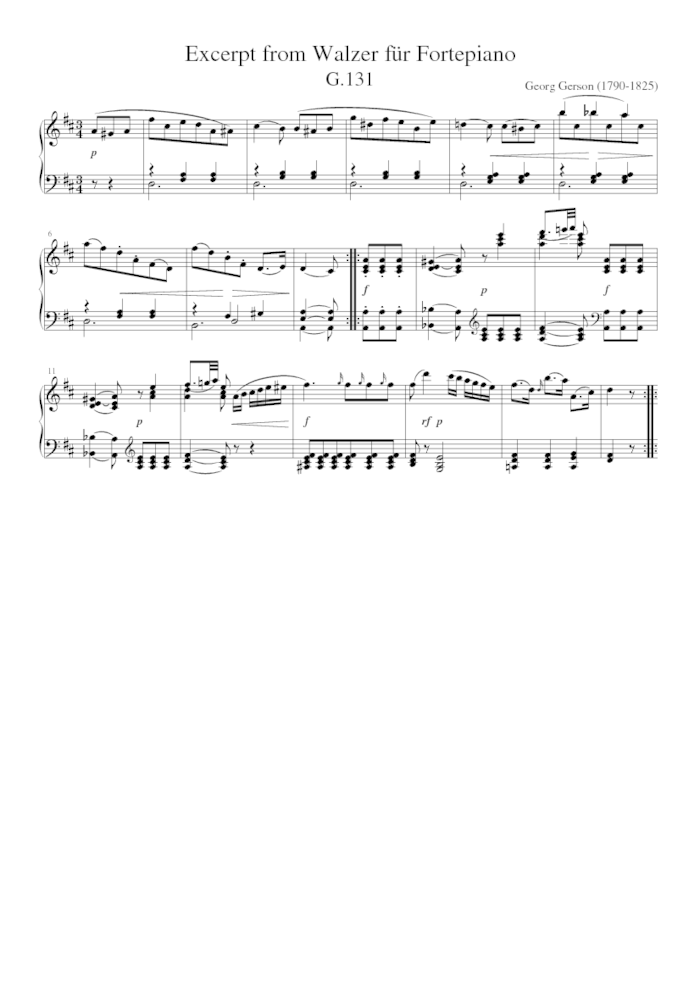

Corresponding output
See also
External links
