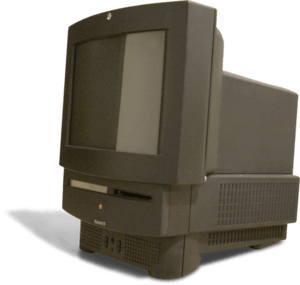

Macintosh TV
 | |
| Also known as |
Mac TV LD50 Peter Pan[1] |
|---|---|
| Release date | October 25, 1993[2][3][4][5] |
| Introductory price | US$2,097 (equivalent to $3,441 in 2015)[6] |
| Discontinued | February 1, 1994[7] |
| Units shipped | 10,000[8][9] |
| Operating system | System 7.1-System 7.1.1, System 7.1.2 (PowerPC upgrade), System 7.5-Mac OS 7.6.1(with Enabler 404), or with PowerPC upgrade, Mac OS 9.1 |
| CPU | Motorola 68030 @ 32 MHz |
| Memory | 5 MB RAM (80 ns 72-pin SIMM), expandable to 8 MB, 1 MB ROM |
| Storage |
160 MB Hard Disk Drive, Floppy Disk Drive 1.44 MB SuperDrive |
| Display | built-in 14" Sony Trinitron CRT |
| Graphics | video: 512 KB VRAM; supports 640 x 480 at 8-bits |
| Dimensions | 17.9" x 13.5" x 16.5" |
| Weight | 40.5 lb. |
| Website |
support |
The Macintosh TV is Apple Computer's first attempt at computer-television integration. It shared the external appearance of the Macintosh LC 500 series, but in black.[10] The Macintosh TV was essentially a Performa 520 that could switch its built-in 14" Sony Trinitron CRT from being a computer display to a cable-ready television. It was incapable of showing television in a desktop window, although it could capture still frames to PICT files.
It came with a small credit card-sized remote control that was also compatible with Sony televisions. It was the first Macintosh to be made in black and came with a custom black keyboard and mouse. Later Apple would issue a custom black Performa 5420 in markets outside the United States with many of the features of the Mac TV. Apple's similar TV tuner card was a popular option for later LC, Performa series, and select models of Power Macintosh G3 beige computers.
Only 10,000 were made in the model's short time on the market.[8]
Specifications[11]
- Bus: 16 MHz
- FPU: none
- performance: 7.0 MIPS
- RAM: 5 MB from factory (4 MB on motherboard, expandable to 8 MB using a single 100ns 72-pin SIMM; can use 1 MB or 4 MB SIMM)
- L2 cache: none
- CD-ROM: AppleCD 300i (2x)
- ADB ports for keyboard and mouse
- DIN-8 serial ports on back of computer
- DB-25 SCSI connector on back of computer
- Antenna In (F-type RF Connector)
- Composite Video-In, Stereo Audio Input (RCA-type)
- no expansion slots
- PRAM battery: 3.6 V lithium
- Gestalt ID: 88
- addressing: 32-bit
- upgrade path: none
