LNWR Special Tank

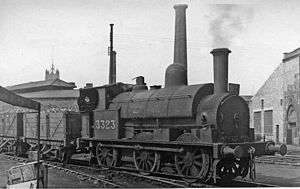

Crewe Works shunter No. 3323 still carrying its LNWR number in May 1948

Type and origin
Power type	Steam
Designer	John Ramsbottom
Builder	Crewe Works
Serial number	1310–1319, 1330–1339, 1434–1463, 1562–1581, 1702–1721, 1822–1841, 1942–1961, 2024–2033, 2094–2113, 2154–2213, 2289–2308, 2339-2358
Build date	1870–1880
Total produced	260

Specifications
Configuration	0-6-0ST
UIC class	C n2t
Gauge	4 ft 8 ¹⁄₂ in (1,435 mm)
Driver dia.	4 ft 3 in (1.295 m) + 2 ¹⁄₂ inches (64 mm)
Wheelbase	15 ft 6 in (4.72 m)
Loco weight	34 long tons (35 t)
Fuel capacity	1.5 long tons (1.5 t)
Water cap	600 imperial gallons (2,700 l; 720 US gal)
Firebox: • Firegrate area	15 sq ft (1.4 m²)
Boiler pressure	150 lbf/in² (1.03 MPa)
Heating surface	1,068.8 sq ft (99.29 m²)
Cylinders	Two, inside
Cylinder size	17 in × 24 in (432 mm × 610 mm)

Career
Operators	London and North Western Railway London, Midland and Scottish Railway British Railways
Disposition	All scrapped

The London and North Western Railway (LNWR) Special Tank was a class of 0-6-0ST steam locomotives. They were a saddle tank version of the LNWR DX Goods class. A total of 278 locomotives were built from 1870 onwards, of which five survived to be inherited by British Railways in 1948. These five were in departmental stock: four – numbered 3 (né 317), 6, 7 (2329) and 8 Earlstown (2359) – as Carriage Department shunters at Wolverton Works; and No. 3323 (né 2322 of May 1878), a shunter at Crewe Works.
