GCR Class 9J

GCR Class 9J
LNER Class J11

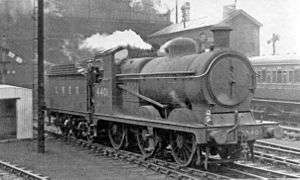

No. 4401 at Manchester London Road Station in 1948

Type and origin
Power type	Steam
Designer	John G. Robinson
Builder	Neilson, Reid & Co. (49) Beyer, Peacock & Co. (25) Gorton Works (70) Vulcan Foundry (15) Yorkshire Engine Co. (15)
Build date	1901–1910
Total produced	174

Specifications
Configuration	0-6-0
UIC class	C n2t
Gauge	4 ft 8 ¹⁄₂ in (1,435 mm)
Driver dia.	5 ft 2 in (1.575 m)
Length	53 ft 1 ³⁄₄ in (16.20 m)
Axle load	18 long tons 0 cwt (40,300 lb or 18.3 t)
Loco weight	52 long tons 0 cwt (116,500 lb or 52.8 t)
Tender weight	48 long tons 6 cwt (108,200 lb or 49.1 t)
Fuel type	Coal
Fuel capacity	6 long tons 0 cwt (13,400 lb or 6.1 t)
Water cap	4,000 imp gal (18,000 l; 4,800 US gal)
Firebox: • Firegrate area	19 sq ft (1.8 m²)
Boiler pressure	180 psi (1.24 MPa)
Heating surface: • Firebox	130 sq ft (12 m²)
Cylinders	Two, inside
Cylinder size	18.5 in × 26 in (470 mm × 660 mm)
Valve gear	Stephenson

Performance figures
Tractive effort	21,960 lbf (97.68 kN)

Career
Operators	Great Central Railway → London and North Eastern Railway → British Railways
Class	GCR: 9J LNER: J11
Power class	BR: 3F
Number in class	174
Axle load class	LNER/BR: Route Availability: 5
Withdrawn	1954–1962
Disposition	All scrapped

The GCR Class 9J (LNER Class J11) was a class of 174 0-6-0 steam locomotives designed by John G. Robinson for freight work on the Great Central Railway (GCR) in 1901.

Career

London and North Eastern Railway

They passed to the London and North Eastern Railway (LNER) in 1923. The LNER classified them as J11 with sub-classes J11/1 to J11/5 because of detail differences.^[1]

British Railways

The whole class survived into British Railways (BR) ownership in 1948 and their BR numbers were 64280–64453.^[2]^[3] All had been withdrawn and scrapped by 1962 and none have been preserved.
