Kintetsu 7020 series

Kintetsu 7020 series

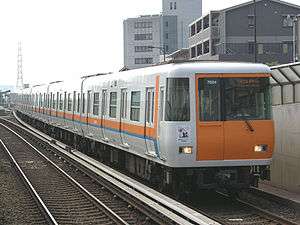

A 7020 series train, August 2006
In service 2004–
Manufacturer Kinki Sharyo
Constructed 2004
Number built 24 vehicles (4 sets)
Number in service 24 vehicles (4 sets)
Formation 6 cars per trainset
Operator(s) Kintetsu Railway
Depot(s) Higashihanazono
Line(s) served
Specifications
Car body construction Steel
Car length 19,000 mm (62 ft 4 in)
Width 2,900 mm (9 ft 6 in)
Doors 4 pairs per side
Maximum speed 95 km/h (60 mph) on the Kintetsu Keihanna Line
70 km/h (45 mph) on the Osaka Municipal Subway Chuo Line
Traction system Variable frequency (IGBT)
Power output 145 kW per motor
Acceleration 3.0 km/h/s
Electric system(s) 750 V DC
Current collection method Third rail
Bogies KD-92
Braking system(s) Electronically controlled pneumatic brakes
Safety system(s) WS-ATC
Track gauge 1,435 mm (4 ft 8 1⁄2 in)

The Kintetsu 7020 series (近鉄7020系) is a commuter electric multiple unit (EMU) train type operated by the private railway operator Kintetsu Railway since 2004.

Operations

The 7020 series sets operate on Keihanna Line services, including through-running to and from the Osaka Municipal Subway Chūō Line.

Formations

Designation Tc M T M M Tc
Numbering Ku 7120 Mo 7220 Sa 7320 Mo 7420 Mo 7520 Ku 7620

Interior

Passenger accommodation consists of longitudinal bench seating throughout.
